Main working principle:
The machine performs three-dimensional vibration in the horizontal direction. The movement of the adapter can be superimposed with the movement of the inner ball. The inertia of the grinding ball/bead drives them to hit the sample material on the inner surface of the arc with high energy, so as to achieve crushing and grinding. Effect. The use of multiple small-diameter grinding balls during grinding can greatly improve the grinding effect.
Application fields: not only suitable for fine grinding and fine grinding of hard (such as: teeth, bones), medium-hard (such as: rice, wheat) and brittle samples (such as glass), but also suitable for soft (such as muscles, internal organs) Organization), elasticity (such as plastic runway, plastic), fibrous materials (such as cotton cloth), etc., this instrument is also highly recommended for the detection of drug content in hair.

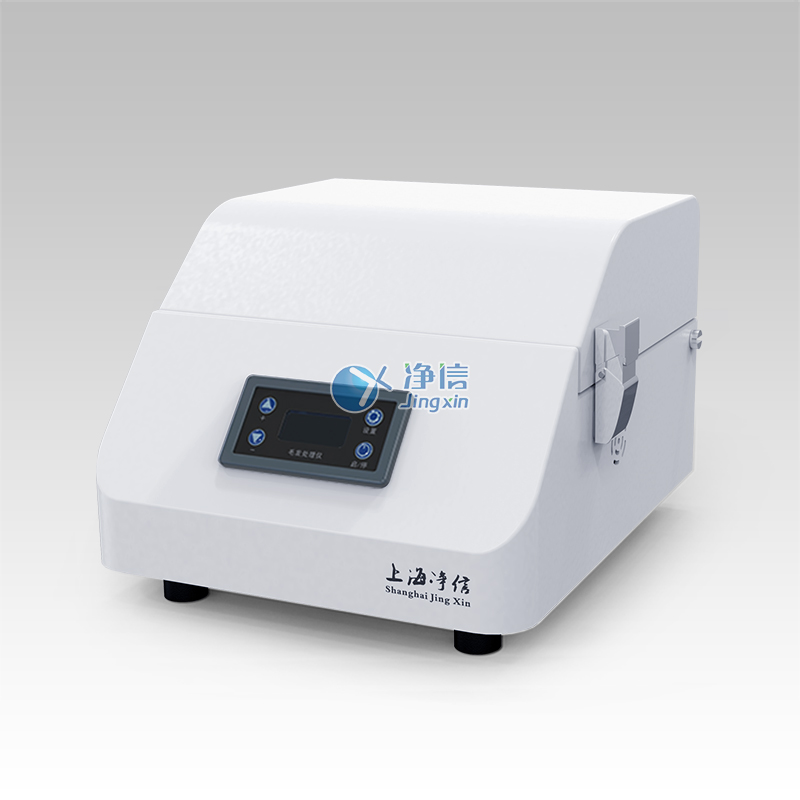

Main features: portable design, small size and light weight, easy to carry. Portable 24V power adaptor, it can be used anytime and anywhere. Small size has great effect, high throughput and good effect, with powerful stirring, cracking, grinding or homogenization.
Product Description:
1. Touch screen display, time can be adjusted arbitrarily.
2. The speed can be adjusted arbitrarily every 100 revolutions (2800rpm～6000rpm).
3. The adjustment time and speed parameters have self-memory function.
4. There are two choices of metal clip and plastic clip, customers can choose according to the experimental conditions.
5. Safety design, when the mask is opened during the working process, the machine stops working to ensure safe operation.
6. Ergonomic design, almost no noise, automatic alarm reminder.
Product advantages:
1. Very powerful stirring, cracking, grinding or homogenization;
2. High throughput, good effect, can process 1-6 samples at the same time;
3. Fast, efficient, simple to operate, and symmetrical oscillation;
4. No cross-contamination, one grinding tube per sample, grinding time 30 seconds-120 seconds;
5. According to the different requirements of customers for samples, samples can be dry or wet milled;
6. It can be connected to the vehicle power supply and 220V mobile power supply, which can be used anytime and anywhere.
Performance parameters:
Main parameters | Parameter range |
voltage: | AC 220±20V, 50HZ |
Motor Power: | 60W |
Mixing speed: | 2800 rpm～6000 rpm |
Timing range: | Set arbitrarily according to experimental requirements |
Noise at work: | ≤55 dB |
Weight: | 2kg |
Dimensions: | 240*180*200mm |
