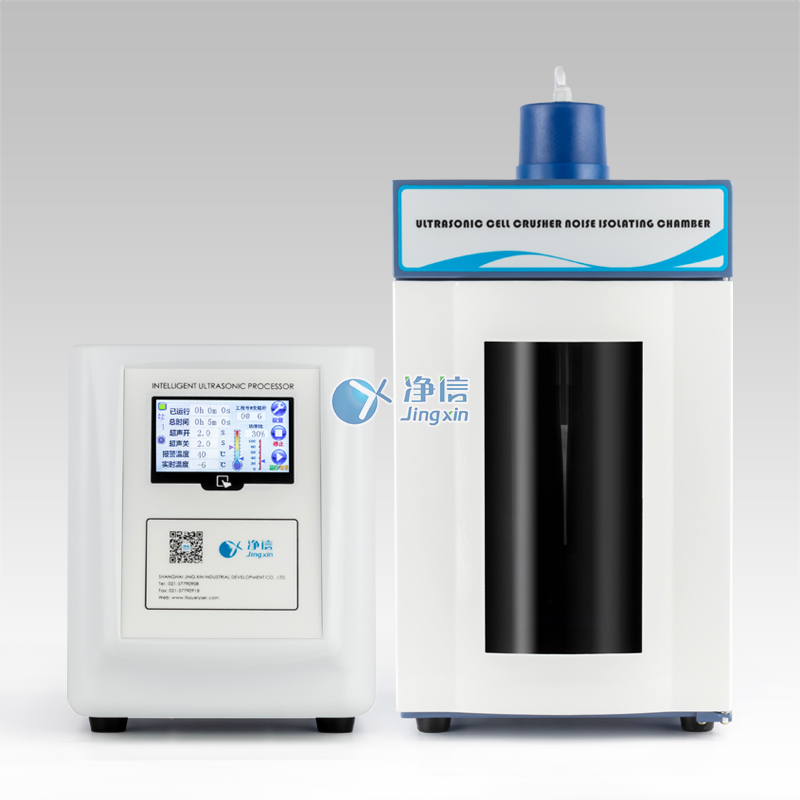

Model：JX-950D
Brand：Jingxin
Specifications ：Set
Introduction：A new generation of products, complete functions, beautiful appearance, reliable performance, 4.3-inch TFT touch screen display, high resolution, high degree of intelligence, centralized control by a central computer,
Features of Ultrasonic Cell Shredder:
1. A new generation of products, complete functions, beautiful appearance, reliable performance, 4.3-inch TFT touch screen display, high resolution
2. High degree of intelligence, centralized control by the central computer, ultrasonic time and power can be set arbitrarily
3. Sample temperature detection display, actual frequency display, frequency microcomputer tracking, automatic fault alarm
4. A matching export hot-selling soundproof box can reduce the noise by more than 70%
5. A set of titanium alloy horns can be used for continuous ultrasound for more than one hour
technical parameter:
Main parameters | Parameter range |
Display method: | 4.3 inch TFT touch screen display, optional 7 inch full touch screen |
Display content: | Time, power, temperature |
Single ultrasound time: | 0.1-9.9S |
Single gap time: | 0.1-99.9S |
timing: | 1 second-99 hours 59 minutes 59 seconds |
frequency: | 20-25KHz Automatic tracking |
power: | 950W (1%-99%) adjustable |
Broken capacity: | 0.2-650ML |
The alarm functions are: | Temperature, time, overload, no load |
Random horn: | Φ6 |
Optional horn: | Φ2、3、10、15 |
Duty cycle: | 0.1-99.9% |
Operating mode: | Gap, continuous |
power supply: | 220V 50Hz/60Hz(110V can be customized) |
Power box + transducer weight: | 14.3kg |
Power supply chassis size and net weight: | 420×280×220（MM）;12.2kg |
Package size: | 534×295×435mm |
Standard configuration: | One host, one sealed transducer, one Φ6 horn, one soundproof box |
Features: | The switching power supply is controlled by PWM, the power is continuously adjustable, the stability is good, and 50 sets of experimental parameters can be stored. |
