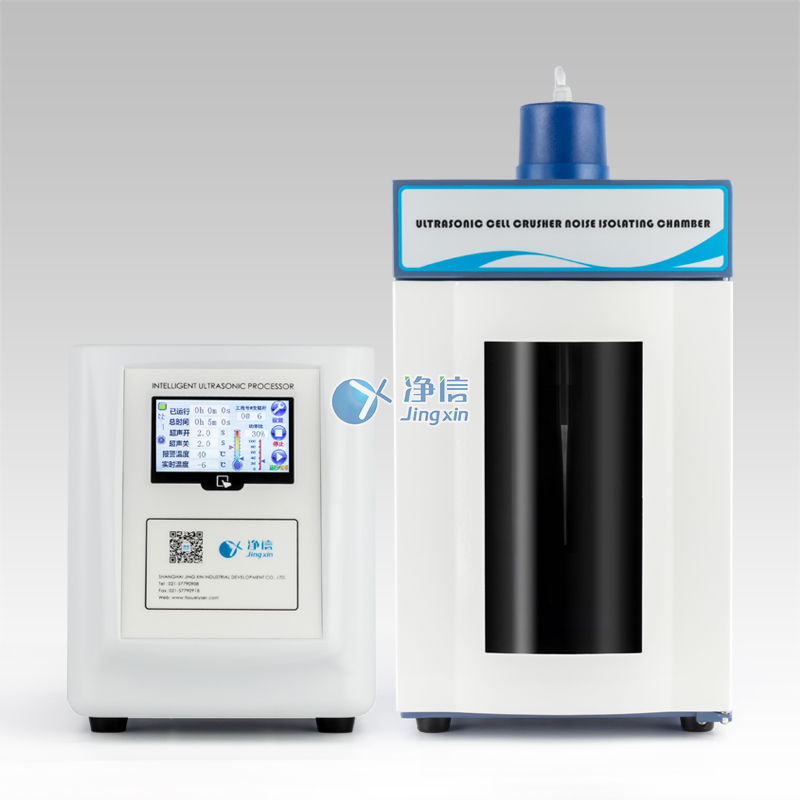

Product Description:
Ultrasonic cell crusher is a multi-functional and multi-purpose instrument that uses strong ultrasound to produce cavitation effects in liquids and ultrasonically treat substances. It can be used to break a variety of animal and plant cells and virus cells, and it can also be used for emulsification. , Separation, homogenization, extraction, defoaming, cleaning and accelerating chemical reactions, etc. It is widely used in biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology and other fields.
Features of Ultrasonic Cell Shredder:
1. A new generation of products, complete functions, beautiful appearance, reliable performance, using 4.3-inch TFT touch screen display
2. High degree of intelligence, centralized control by the central computer, ultrasonic time and power can be set arbitrarily
3. Sample temperature detection display, frequency microcomputer tracking, automatic fault alarm
4. A matching export hot-selling soundproof box can reduce the noise by more than 70%
5. A set of titanium alloy horns can be used for continuous ultrasound for more than one hour
technical parameter:
Main parameters | Parameter range |
Display mode: | 4.3 inch TFT touch screen display, optional 7 inch full touch screen |
Single ultrasound time: | 0.1-9.9S |
Single gap time: | 0.1-9.9S |
Total working time: | 1-999M |
frequency: | 19.5-20.5KHz |
Power: | 50-1800W（1%-99%）adjustable |
Crushing capacity: | 30-1200ML(need to match the corresponding horn L) |
Temperature control range: | room temperature -90 degrees (optional low temperature and constant temperature) |
Alarm functions include: | temperature, time, overload, no load |
Random horn: | Φ20 or 22 |
Optional horn: | Φ10、15、22 |
Duty cycle: | 0.1-99.9% |
Power: | 220V±5%/ 50Hzcustomized |
Power box + transducer weight: | 18kg |
Power supply chassis size and net weight: | 42×28×22（CM）;16kg |
Features: | PWM control switching power supply, continuously adjustable power, good stability, can store 50 sets of experimental parameters |
