Model：UP-250
Brand：Jingxin
Specifications ：Set
Introduction：It is a multi-functional and multi-purpose instrument that uses strong ultrasound to produce cavitation effects in liquids and ultrasonically treat substances. It can be used to break a variety of animal and plant cells and virus cells.
Product Description:

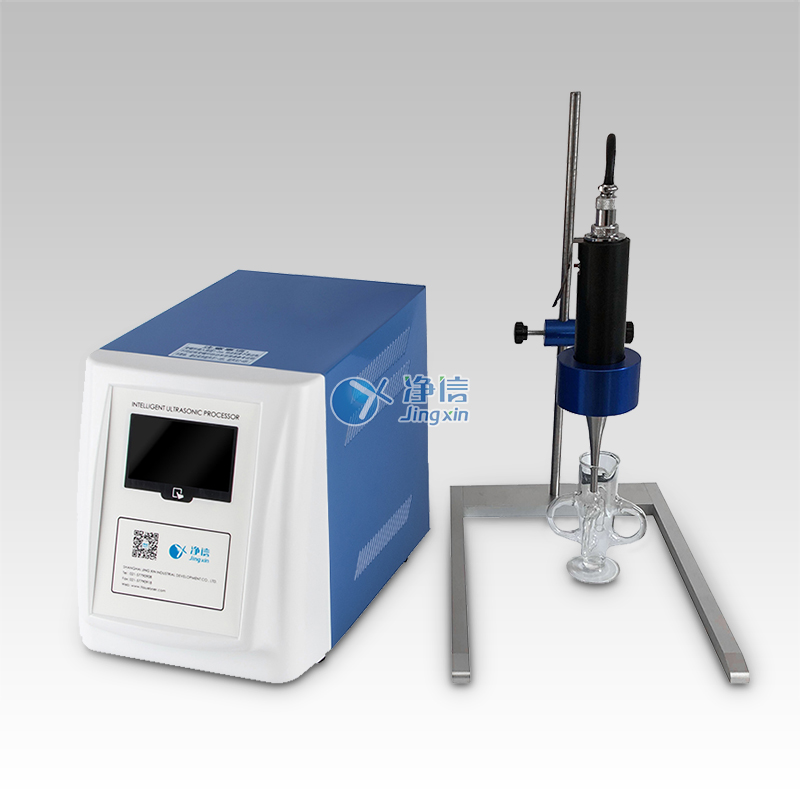

The handheld ultrasonic cell pulverizer is a multi-functional and multi-purpose instrument that uses strong ultrasound to produce cavitation effects in liquids and ultrasonically treat substances. It can be used for the crushing of various animal and plant cells and virus cells, and it can be used at the same time. To emulsify, separate, homogenize, extract, defoam, clean and accelerate chemical reactions, etc. It is widely used in biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology and other fields.
The handheld ultrasonic breaker has beautiful appearance and reliable performance. The instrument adopts large-screen display, centralized control by the central computer, arbitrarily set ultrasonic time and power, sample temperature detection and display, frequency microcomputer tracking, and automatic fault alarm. All functions are displayed on the 4.3-inch TFT touch screen.
It adopts automatic and manual (or optional pedal) working mode; the ultrasonic power can be continuously adjusted with 1% accuracy; the transducer is small in size and light in weight, and it can be held in the hand for micro-samples or placed in a fixed bracket Do it on.
is suitable for 96-well microtiter plates and countless small test tubes. The handheld ultrasonic transducer jogs to control the ultrasound, so that countless samples can be sonicated in a short time.
technical parameter:
Main parameters | Parameter range | Parameter range |
model | UP-250 | UP-400S |
Way of working | Automatic or manual | Automatic or manual |
Ultrasonic power (W) 1%-99% | 5-250 | 5-400 |
Working frequency | 20-30 | 20-30 |
Processing capacity | 0.1-150 | 0.1-300 |
Random horn | Φ3 | Φ6 |
Optional horn | Φ2、Φ5、Φ6 | Φ2、Φ3、Φ5、Φ8 |
Ultrasonic pulse on time | 0.1-9.9 | 0.1-9.9 |
Ultrasonic pulse off time | 0.1-9.9 | 0.1-9.9 |
Total working time | 1-999 | 1-999 |
Temperature protection range | 0-99 | 0-99 |
Data storage function | 有Yes | 有Yes |
Foot switch | Optional | Optional |
Display mode | 4.3 inch TFT touch screen | 4.3 inch TFT touch screen |
