Features:
1. Tailor-made for the pre-processing of second-generation sequencing DNA samples and chromatin immunoprecipitation experiment samples;

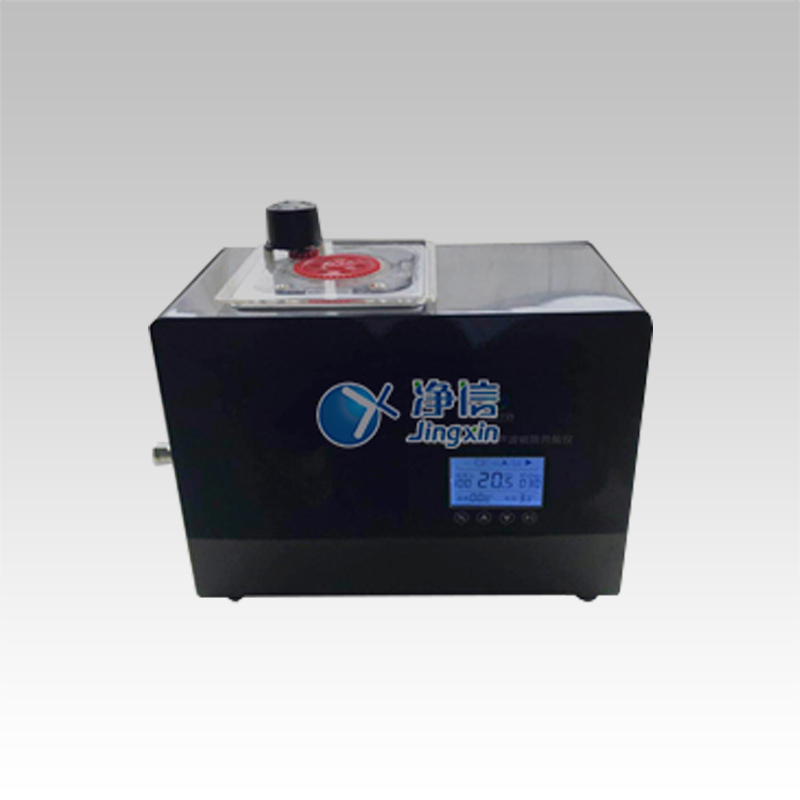

2. Digital LCD screen display, with instrument life monitoring and temperature overheating protection device;
3. 12 samples can be loaded at one time;
4. One-piece main unit, anti-noise cover and ultrasonic water tank;
5. The sample is broken in a closed container, no infectious flying mist is generated, and no additional ultrasonic probe needs to be inserted;
6. Broken size of nucleic acid sample: 1kb~100bp;
7. High power, good nucleic acid fragmentation effect (it only takes 20 minutes to fragment DNA to 200bp);
8. No need to use special materials (such as glass) consumables, saving experiment costs;
9. The pause function is added. As long as the anti-noise cover of the instrument is lifted, the ultrasound system will pause, and the ultrasound will continue after the cover is closed, which can accurately grasp the sample ultrasound time and increase the safety of the experimenter in operating the instrument.
The main function:
1. DNA fragmentation of second-generation sequencing samples;
2. Co-immunoprecipitation experiment.
Optional adapter for the instrument:
0.1ml adapter: 12 0.1ml tubes can be used at the same time, and the reaction volume of a single sample can be between 5μl ~ 50μl;
0.65ml adapter: 12 0.65ml tubes can be used at the same time, and the reaction volume of a single sample can be between 50μl ~ 100μl;
1.5ml adapter: 6 1.5ml tubes can be used at the same time, and the reaction volume of a single sample can be between 100μl ~ 300μl;
15ml Adapter: Contains aluminum sample height adjustment ring, which can use 6 15ml centrifuge tubes at the same time, and the reaction volume of a single sample can be between 500μl ~ 2ml.
