*Rolling and adhesion of leukocytes on endothelial cells cultured under flow
*Simulation of the bifurcation of blood vessels for arteriosclerosis research
*Cell-cell interaction studies and cell-drug interaction screenings under flow conditions

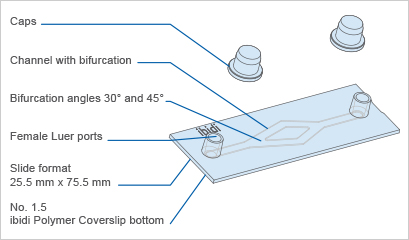

Specifications
Outer dimensions (w x l) | 25.5 x 75.5 mm2 |
Adapters | Female Luer |
Volume per reservoir | 60 μl |
Volume of the channel | 110 μl |
Height of the channel | 0.4 mm |
Width of the channel | 3 mm |
Branching angles | 30° and 45° |
Growth area | 2.8 cm2 |
Coating area using 110 μl | 5.6 cm2 |
Bottom: ibidi Polymer Coverslip | |
Select the ideal Perfusion Set for your flow application here.
Technical Features
30° and 45° angles to simulate the bifurcation of blood vessels
Easy connection to tubes and pumps

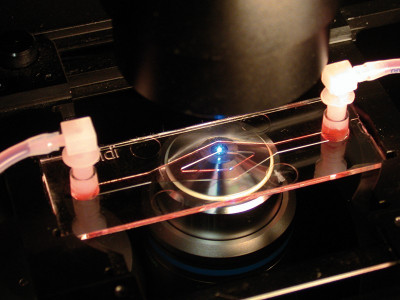

Fully compatible with high resolution microscopy and immunofluorescence staining
Defined shear stress and shear rate levels
The flow is always laminar, i.e., turbulent flows* are not possible
* For simulation of turbulences we recommend oscillating the flow using the ibidi Pump System.

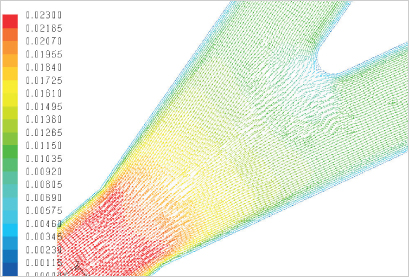

Non-Uniform, Laminar Shear Stress
Use Application Note 18 to calculate the shear stress in a μ-Slide y-shaped.

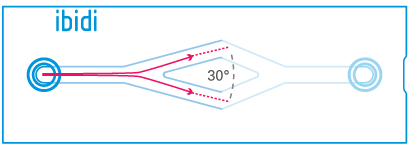

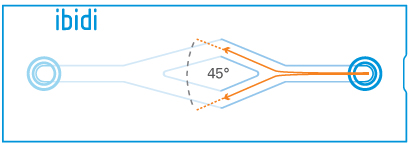

Two Flow Directions Possible
