Product Description:

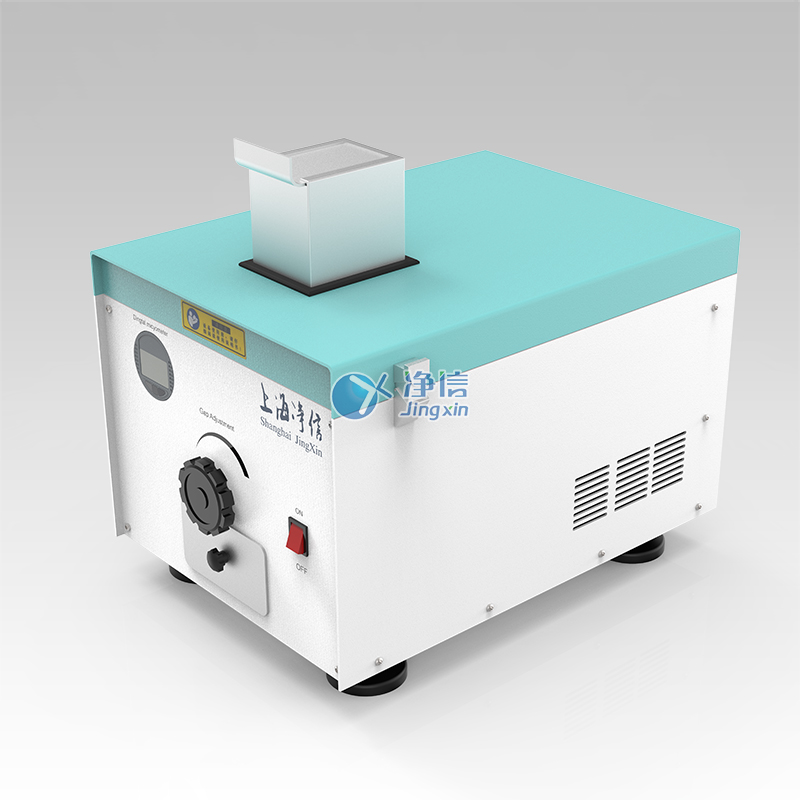

JXGS-2A is a small jaw crusher, whose movable jaw and fixed jaw are lined with corundum liner;
There are corundum ceramic plates on both sides of the crushing cavity, which greatly improves the wear resistance of the equipment and does not pollute the materials. At the same time, the gap between the movable jaw and the fixed jaw can be adjusted.
The jaw crusher can be used as the front machine of the material ball mill.
technical parameter:
Main parameters | Parameter range |
Voltage | 208 - 240VAC 50Hz |
Crushing speed | 500rpm |
Sample type | Medium hard, hard, brittle samples |
Time | 0-60 minutes adjustable |
Jaw plate | Two high-purity corundum ceramic liners-easy to clean. |
Crushing size | Feeding size: 1- 50mm Outlet size: 0.5 mm-2mm |
Features | The main components are the body and the movable jaw The front is equipped with a fixed jaw liner, the material is corundum ceramic, and the left and right sides are equipped with corundum ceramic liner The movable jaw is also lined with corundum ceramic liner. Since the four sides of the jaw chamber are lined with non-metallic liner, it does not pollute the material and improves the wear resistance. |
Dimensions | 400*550*530 |
Net weight | 50 lbs |
Warranty period | One year warranty period, lifetime maintenance |
