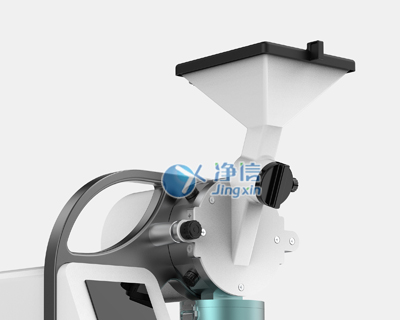

Model：JXQJ-500
Brand：Jingxin
Specifications ：Taiwan
Introduction：Cross-percussion mill JXQJ-500 realizes the crushing process through percussion, impact and shear effects. The crushed sample passes through the feeding funnel and directly enters the center of the crushing chamber.
Product Description:
The cross-percussion mill JXQJ-500 realizes the crushing process through percussion, impact and shear effects. The crushed sample passes through the feeding funnel and directly enters the center of the crushing chamber. The sample captured by the cross-beating rotor is crushed between the impact crushing plate of the rotary knife and the tooth-shaped crushing insert. Once the sample particle size is smaller than the sieve aperture, they enter the receiving container. The percussion rotor sucks in a large amount of air through the feeding funnel channel, thereby accelerating the speed of the crushed sample leaving the crushing chamber. The subsequent connected filter system can recover the fine particles in the airflow.
Product advantages:
Brushless motor, stable operation, low noise
Frequency conversion speed control module
Security Setting Module
Various screening dies and rotors of different materials can be selected
Application areas: seeds, soil, metal ore, glass, coking coal, minerals, oxide ceramics, slag, ballast, cement slag, etc.
technical parameter:
Main parameters | Parameter range | |
Motor input/output power | 1000/600 W | |
Speed | 3000-6500 rpm, digital display | |
Tangential speed: | shear grinding head 25m/s | impact grinding head 35m/s |
Crushing cavity volume | 300mL | |
Noise level | く70 dB | |
Power | 220V/50HZ | |
Protection class | IP 35 | |
